2/2 SOLENOID VALVES FOR VACUUM SERVICE

2/2 SOLENOID VALVES FOR VACUUM SERVICE 3/8" - 2"

TECHNICAL DATA

  • Internal parts: stainless steel
  • Fluid temperature: -10°C to +90°C
  • Ambient temperature: max +60°C
  • Viscosity: max 21 mm2/s
  • Response time: 5 - 120 ms
  • Voltage: 230, 115, 48, 24 V AC / 24, 12 V DC
  • Duty cycle: continuous (ED100%)
  • Electrical protection: IP65 (with plug to ISO 4400)

    • Long term use in humid environment requires the use of sealing sets.

Technical data for 2/2 solenoid valves for vacuum service

2/2 Closed when de-energised (NC)

Ports Orifice size
[mm]		 Kv
[water l/min]		 Minimum
ABSOLUTE
pressure
[mbar]		 Body Seal Mass
[kg]		 Coil type Model Order code

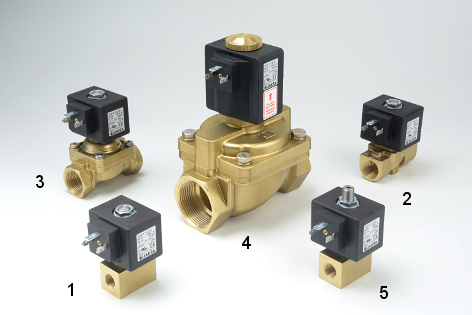

(click for details)		 Fig.
G3/8 7 13 15 Brass NBR 0.52 TM35 D224 320717 1
G1/2 10 25 15 Brass NBR 0.57 TM35 D240 340481 2
G1/2 12 40 15 Brass NBR 0.43 TM30 M2451 301702 3
G3/4 18 65 15 Brass NBR 0.76 TM35 M2521 301697
G1 25 180 15 Brass NBR 1.2 TM35 M2621 301699
G6/4 40 330 15 Brass NBR 2.75 TM40 M275 370810 4
G2 50 630 15 Brass NBR 5.9 TM40 M282 391491

3/2 Closed when de-energised (NC)

Ports Orifice size
[mm]		 Kv
[water l /min]		 Minimum
ABSOLUTE
pressure
[mbar]		 Body Seal Mass
[kg]		 Coil type Model Order code
(click for details)		 Fig.
G1/4 4.5 7.5 15 Brass NBR 0.52 TM35 D32 330742 5



OPTIONS:

• EEx me II explosion-proof coils
• NPT ports
• Other versions on request.
