2/2 SOLENOID VALVES FOR GAS SERVICE

2/2 SOLENOID VALVES FOR GAS SERVICE 1/4" - 2"

TECHNICAL DATA

  • Internal parts: stainless steel
  • Seals: NBR
  • Fluid temperature: -10°C to +60°C
  • Ambient temperature: max +50°C
  • Voltage: 230, 115, 48, 24 V AC / 24, 12 V DC (Types PV and PVNC 230 V AC only)
  • Electrical protection: IP65 (with plug to ISO 4400)

    • Long term use in humid environment requires the use of sealing sets.

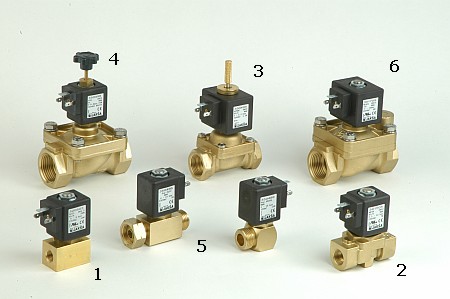

1. Direct acting solenoid valves (fig. 1)

Closed when de-energised (NC)
EN 161 Certified

2. Direct acting solenoid valves (fig. 2)

Closed when de-energised (NC)
EN 161 Certified

3. Gas line shutoff solenoid valves (fig. 3)

Closed when de-energised (NC)
EN 161 Certified

4. Gas line shutoff solenoid valves (fig. 4)

Open when de-energised (NO)
EN 161 Certified

5. Solenoid valves for gas cylinders (fig. 5)

Closed when de-energised (NC)
EN 161 Certified

6. Process valves (fig. 6)

Closed when de-energised (NC)
EN 161 Certified

OPTIONS:

• EEx me II explosion-proof coils
• Other versions on request.
