TOTAL ISOLATION SOLENOID VALVES

2/2 TOTAL ISOLATION SOLENOID VALVES 3/8" - 3/4"

TECHNICAL DATA

  • Internal parts: none in contact with fluid
  • Seals: NBR, EPDM, FPM
  • Fluids: corrosive
  • Fluid temperature: -10°C to +75°C
  • Ambient temperature: +55°C max
  • Viscosity: 21 mm2/s max.
  • Response time: 10 to 20 ms
  • Voltage: 230, 115, 48, 24 V AC; 24, 12 V DC
  • Duty cycle: continuous (ED100%)
  • Cycling rate: 10 - 100 cycles/min
  • Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400)

    • Long term use in humid environment requires the use of sealing sets.

Technical data for 2/2 total isolation solenoid valves

Closed when de-energised (NC)

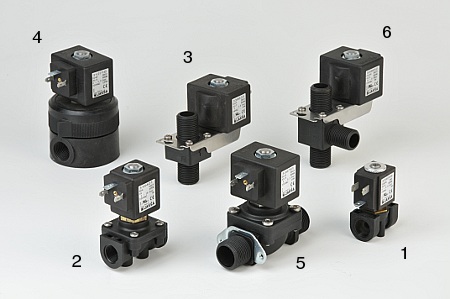

Ports Orifice size
[mm]		 Kv
[water l/min]		 Differential pressure
[bar]		 Body Seal Mass
[kg]		 Coil type Model Order code
(click for details)		 Fig.
min max
G3/8 4 5.9 0 0.4 PA EPDM 0.12 TM25 DL4PA 339099 1
6 14 0 0.4 PP FPM 0.27 TM30 DL6 339004 2
6 14 0 2 PP FPM 0.38 TM35 DL6 339042
6 12 0 3 PP EPDM 0.45 TM35 DL10 339878 3
11 38 0 0.15 PP FPM 0.27 TM30 DL11 339025 2
11 38 0 0.6 PP FPM 0.38 TM35 DL11 339026
G1/2 10 15 0 1 PP EPDM 0.47 TM35 D249 312710 4
10 20 0 1.8 PP EPDM 0.45 TM35 DL10 339830 3
10 20 0 1.8 PP FPM 0.45 TM35 DL10 339820
G3/4 18 70 0 0.1 PA EPDM 0.47 TM35 DL18 339781 5

Closed when de-energised (NC)

Miniature PTFE body

Ports Orifice size
[mm]		 Kv
[water l/min]		 Differential pressure
[bar]		 Body Seal Mass
[kg]		 Coil type Model Order code
(click for details)		 Fig.
min max
Ø4.5 2 0.22 0 0.2 PTFE EPDM 0.12 TM25 DL2T 339104 -

Closed when de-energised (NC)

All wetted parts made of PTFE

Ports Orifice size
[mm]		 Kv
[water l/min]		 Differential pressure
[bar]		 Body Seal Mass
[kg]		 Coil type Model Order code
(click for details)		 Fig.
min max
G1/8 4 5.4 0 1.5 PTFE PTFE 0.54 TM35 DL4T 339091 -

Pinch valves (NC)

Body Ø
[mm]		 Tube Ø [mm] Pinching force
[N]		 Mass
[kg]		 Coil type Voltage Power
[W]		 Valve type Order code
(click for details)
inner outer
25 3 5 4 0.22 TM35 24 V DC 12 DLC3 300507
30 6 9 14 0.42 TM35 24 V DC 18 DLC6 300506

Pinch valve for vacuum (NC)

Body Ø
[mm]		 Tube Ø [mm] Pinching force
[N]		 Mass
[kg]		 Coil type Voltage Power
[W]		 Valve type Order code
(click for details)
inner outer
30 6 10 19 0.42 TM35 24 V DC 18 XDLC6 300503

Open when de-energised (NO)

Ports Orifice size
[mm]		 Kv
[water l/min]		 Differential pressure
[bar]		 Body Seal Mass
[kg]		 Coil type Model Order code
(click for details)		 Fig.
min max
G3/8 6 14 0 0.4 PP FPM 0.43 TM35 DL6NO 339688 2
11 38 0 0.15 PP FPM 0.43 TM35 DL11NO 339695
G1/2 10 20 0 1.4 PP EPDM 0.45 TM35 DL10NO 339840 3
G3/4 18 70 0 0.1 PA EPDM 0.47 TM35 DL18NO 339810 5

3/2 diverter (NC/NO)

Ports Orifice size
[mm]		 Kv
[water l/min]		 Differential pressure
[bar]		 Body Seal Mass
[kg]		 Coil type Model Order code
(click for details)		 Fig.
min max
G3/8 6 16 0 3 PP EPDM 0.45 TM35 DL10R 339870 6
G1/2 10 20 0 0.5 PP EPDM 0.45 TM35 DL10R 339850

NEW

Closed when de-energised (NC) - High pressure - INOX body

Ports Orifice size
[mm]		 Kv
[water l/min]		 Differential pressure
[bar]		 Body Seal Mass
[kg]		 Coil type Model Order code
(click for details)		 Fig.
min max
G1/4 2 2 0 15 INOX EPDM 0.35 TM30 XDL2N 339112 -

NEW

Air operated, open when de-energised (NO)

Ports Orifice size
[mm]		 Kv
(water at 1bar)
[l/min]		 Differential pressure
[bar]		 Body Seal Mass
[kg]		 Model Order code
(click for details)
min max
G3/4 18 70 0 6 PA EPDM 0.35 DL18NOpa 339762

OPTIONS:

• EEx me II explosionproof coils
• Other versions on request.
