BEER TAP VALVES

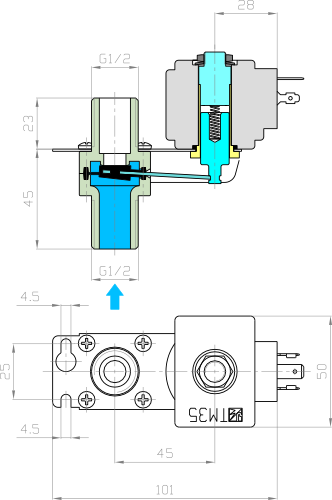

DL10 axial solenoid valve with polypropylene body,
closed when de-energised (NC)
| Ports | Orifice size [mm] |
Kv [l/min] | Differential pressure [bar] |
Material | Mass [kg] |
Coil type | Model | Voltage | Power [W] |
Order code | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| water (p = 1 bar) | min | max | body | seal | ||||||||
| G1/2 | 10 | 20 | 0 | 1.8 | PP | EPDM | 0.45 | TM35 | DL10 | 24 V DC | 18 | 339834 |
| 12 V DC | 18 | 339831 | ||||||||||
DL6 diaphragm valve with polypropylene body, closed when de-energised (NC)
| Ports | Orifice size [mm] |
Kv [l/min] | Differential pressure [bar] |
Material | Mass [kg] |
Coil type | Model | Voltage | Power [W] |
Order code | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| water (p = 1 bar) | min | max | body | seal | ||||||||
| G3/8 | 6 | 12 | 0 | 2 | PP | FPM | 0.38 | TM35 | DL6 | 24 V DC | 12 | 339028 |
| 12 V DC | 12 | 339017 | ||||||||||

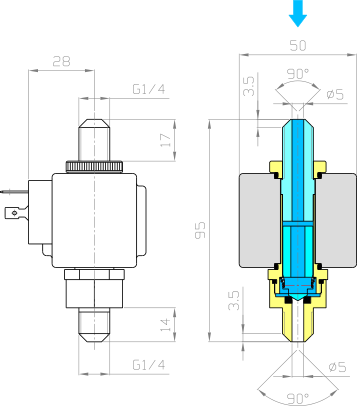

D2PN axial valve with stainless steel body, closed when de-energised (NC)
| Ports | Orifice size [mm] |
Kv [l/min] | Differential pressure [bar] |
Material | Mass [kg] |
Coil type | Model | Voltage | Power [W] |
Order code | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| water at 1 bar | min | max | body | seal | ||||||||
| G1/4 | 5 | 7.8 | 0 | 2 | INOX | NBR | 0.4 | TM35 | D2PN | 24 V DC | 18 | 399845 |
| 12 V DC | 18 | 399846 | ||||||||||
