Closed when de-energised (NC)
Ports | Orifice size [mm] |
Kv | Differential pressure [bar] |
Material | Mass [kg] |
Coil type | Model | Voltage | Power [W] |
Order code | |||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
water [l/min] | air [m3/h] | min | max | body | seal | ||||||||

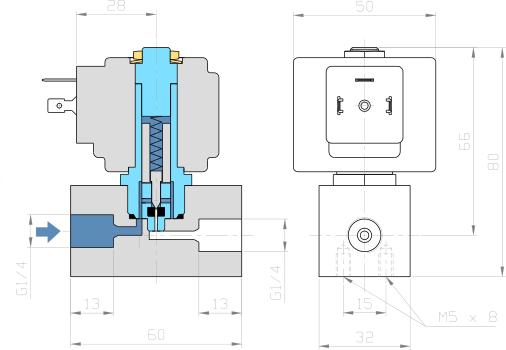

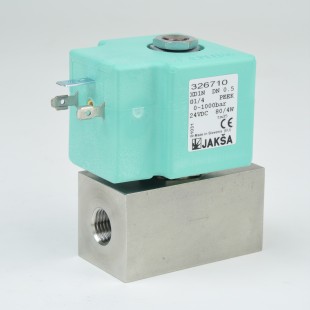

G1/4 | 0.5 | 0.13 | 0.20 | 0 | 1000 | AISI 316Ti | PEEK | 0.52 | TM35/H | XD1N | 24 V | 80/4 *2 | 326710 |
0.7 | 0.22 | 0.39 | 0 | 700 | AISI 316Ti | PEEK | 0.52 | TM35/H | XD1N | 24 V | 80/4 *2 | 326715 | |
HP 1/4” *1 | 0.5 | 0.13 | 0.20 | 0 | 1000 | AISI 316Ti | PEEK | 0.52 | TM35/H | XD1N | 24 V | 80/4 *2 | 326711 |
*1 High Pressure Cone & Thread port, pipe size 1/4” thread size 9/16”-18 UNF.
*2 80 W pull / 4 W hold
FEATURES:
- Valve body AISI 316Ti, solenoid shaft AISI 316L
- High Pressure Cone & Thread or face seal fittings can be used
- Excellent sealing also at low pressure (around 10 bar) and with gaseous fluids
- High wear resistance and durability
- For demanding applications with high cycling rates.
